Product Description

Technical Specifications Overview
Model NO.Altai DP1 (Aed-201)
CertificationCE, MSDS, ISO13485, Cfda, FSC
ECG Analysis8.5 Second
Hi-Cap Charging8 Second
Shock Output150J (Adult), 50J (Pediatric)
Battery PackNon Rechargeable Li-Mn Battery (12V, 4.2 Ah)
Shock FrequencyNot Less Than 200 Times
Weight1.9kg
Data Storage40 Minute (built-in memory)
Data TransferBluetooth
Warranty5 Year (Except battery and Pads)
Key Features & Advantages

Altai DP1: High Quality Automatic External Defibrillator (AED)

★ Biphasic Truncated Exponential with low energy to minimize myocardial injury
★ High capacity battery supporting up to 400 shocks
★ Automatic recording of ECG data & ambient sounds
★ One-step operation: Power on when cover is opened
★ Daily self-test and automatic power-on self-test
★ Adult and Child mode compatible with preinstalled pads
★ Automatic voice guidance throughout the operation
★ Shorter time in ECG analysis and shock preparation
Product Presentation

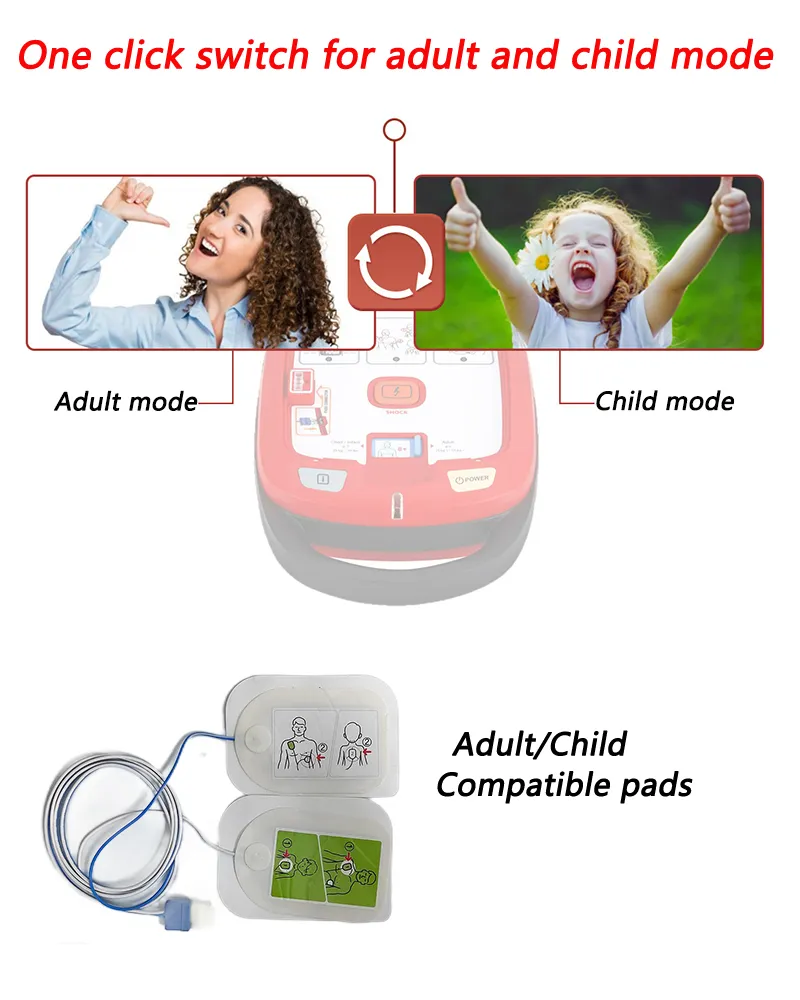

AED Product View

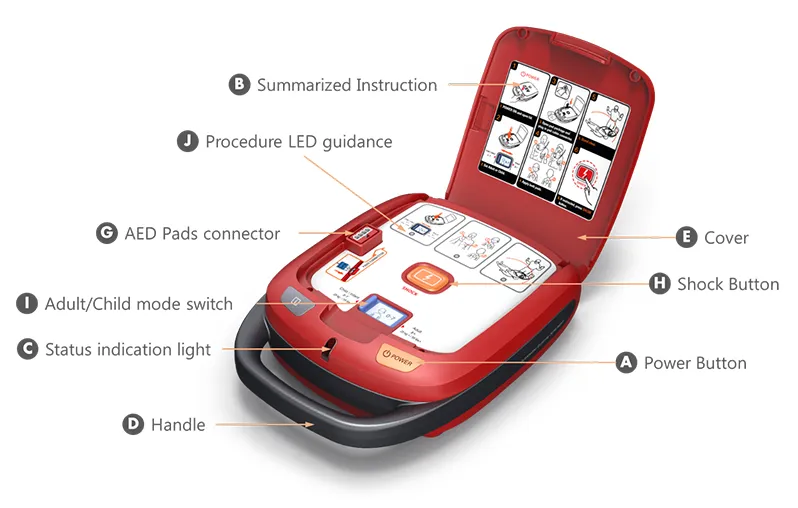

AED Operation
AED Details
Facility and Production
Production Line
Testing Area
Warehouse
Quality Control
Office Facility
Assembly Line
Frequently Asked Questions (FAQ)
Q1: How long is the analysis and charging time for the Altai DP1? A: The ECG analysis takes approximately 8.5 seconds, and the high-capacity charging is completed in just 8 seconds.
Q2: Can the device be used on both adults and children? A: Yes, it features both adult and pediatric modes with preinstalled electrode pads compatible for both groups.
Q3: What type of battery does the AED use? A: It uses a non-rechargeable Li-Mn battery (12V, 4.2 Ah) that supports at least 200 shocks.
Q4: Does the device record data during a rescue? A: Yes, it automatically records up to 40 minutes of ECG data and ambient sounds in its built-in memory.
Q5: What is the warranty period for this AED? A: The main unit comes with a 5-year warranty, excluding the battery and electrode pads.
Q6: Are the voice guides customizable? A: Yes, the automatic voice guidance system can be customized for different languages to suit local requirements.
